Heavy-Duty Truck Tractor Tire Wheel Dollies

Across the available lineup, load capacities range from 3,800 lbs up to 4,800 lbs. The Hydraulic Wheel Dolly offers a capacity of 3,800 lbs, the Industrial Wheel Mover handles up to 4,000 lbs, and the Heavy Duty Ag Wheel Dolly accommodates loads up to 4,800 lbs to safely service heavy agricultural and commercial machinery.

The tire dollies accommodate a broad range of tire and wheel dimensions. For example, the Industrial Wheel Mover features sliding adjustable rollers that fit wheel diameters from 36 to 90 inches, while the Hydraulic Wheel Dolly accommodates wheel diameters from 39 inches to 86 inches with a maximum wheel width of 31 inches.

The integrated rollers allow operators to rotate the wheel while it is seated in the dolly. The Industrial Wheel Mover and Hydraulic Wheel Dolly feature three rollers on each side, facilitating smooth wheel rotation. This makes aligning wheel bolt holes and lug studs fast and precise without needing to reposition the entire lifting unit.

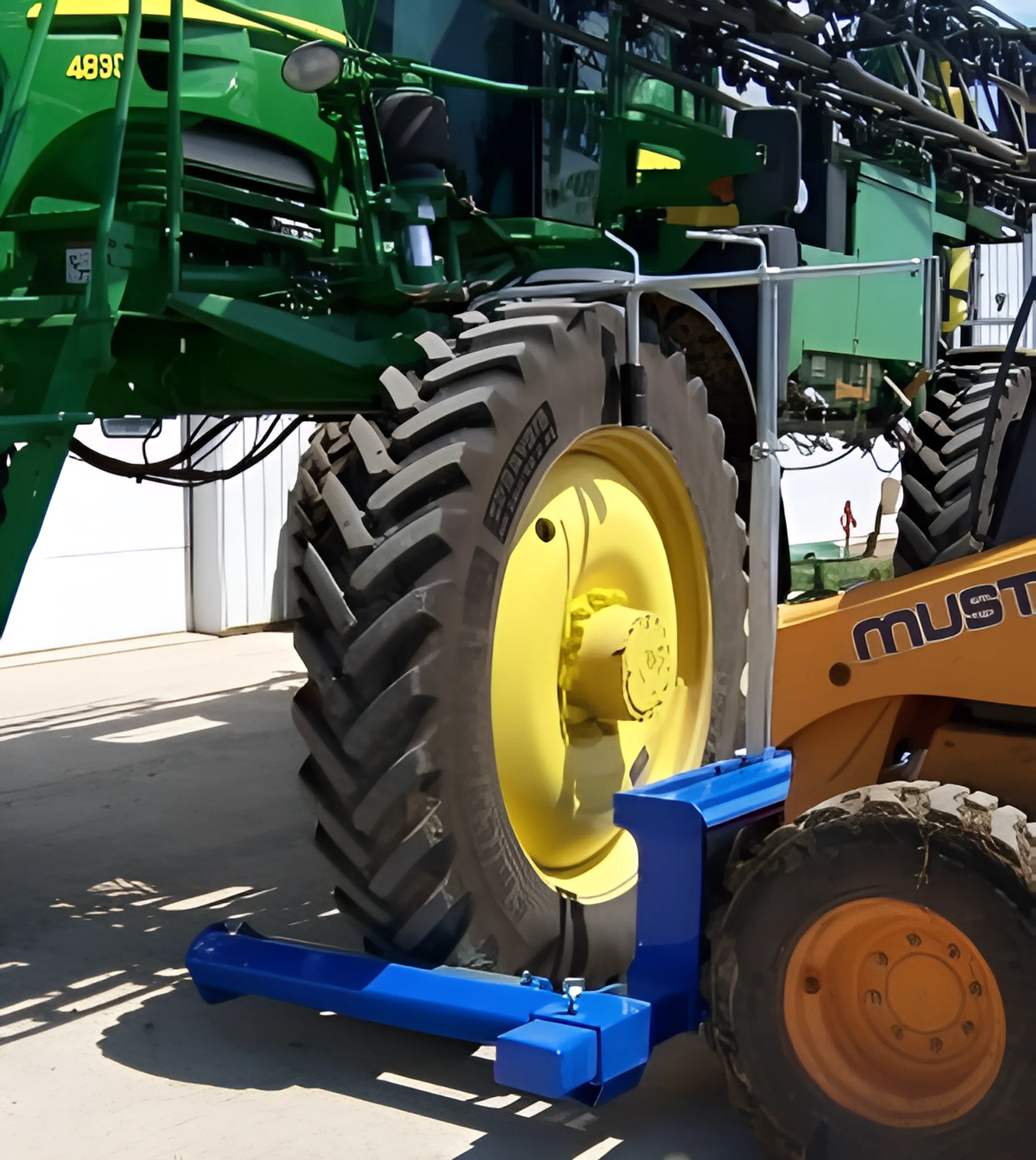

Yes. The Industrial Wheel Mover is compatible with skid loader quick-attach systems. In addition, dedicated forklift and loader attachments are available, allowing facilities to utilize existing prime movers such as skid loaders and forklifts for safely maneuvering, removing, and transporting large agricultural machinery, tractor, and contractor wheels across job sites and service shops.

The dollies feature multiple power and lifting mechanisms to suit different service operations. Options include manual and mechanical designs, models operated by a two-stage hydraulic pump for lifting action, and electric-over-hydraulic configurations utilizing a 12V hydraulic system with a handheld control for adjusting roller width quickly and efficiently.

Each model incorporates dedicated retention features. The Industrial Wheel Mover includes an adjustable safety arm that holds the tire during transport and adjusts side-to-side around fenders. Similarly, the Heavy Duty Ag Wheel Dolly provides a safety arm with three placement positions, while the Hydraulic Wheel Dolly uses an adjustable retaining arm and support handles.
