Hydraulic Wheel Dollies

Hydraulic lifting equipment encompasses various configurations designed for specific maintenance tasks. Common designs include bottle jacks, floor jacks, and specialized wheel dollies powered by manual hydraulic pumps or electric hydraulic systems. While standard jacks elevate equipment from below, dedicated wheel dollies feature rollers and retaining arms that support, rotate, and transport heavy wheels during assembly and tire removal.

Hydraulic jacks and wheel equipment utilize fluid power to lift, support, and maneuver heavy machinery and components with minimal physical effort. In equipment service environments, hydraulic wheel dollies are specifically used for fast and safe removal, alignment, and transport of large agricultural and industrial tires. They allow service technicians to rotate wheels smoothly to align lug nuts during mounting.

The Hydraulic Wheel Dolly model BS3800 handles tire sizes ranging from semi tires up to 800 metric. It accommodates tires with a minimum diameter of 39 inches, a maximum wheel diameter of 86 inches, and a maximum wheel width of 31 inches, providing versatile support for large agricultural and industrial machinery wheels.

Our wheel dollies are engineered for heavy-duty lifting demands. The Hydraulic Wheel Dolly model BS3800 offers a maximum load capacity of 3,800 lbs, operated by a two-stage hydraulic pump. For larger requirements, the Heavy Duty Ag Wheel Dolly handles loads up to 4,800 lbs using a 12V over hydraulic system.

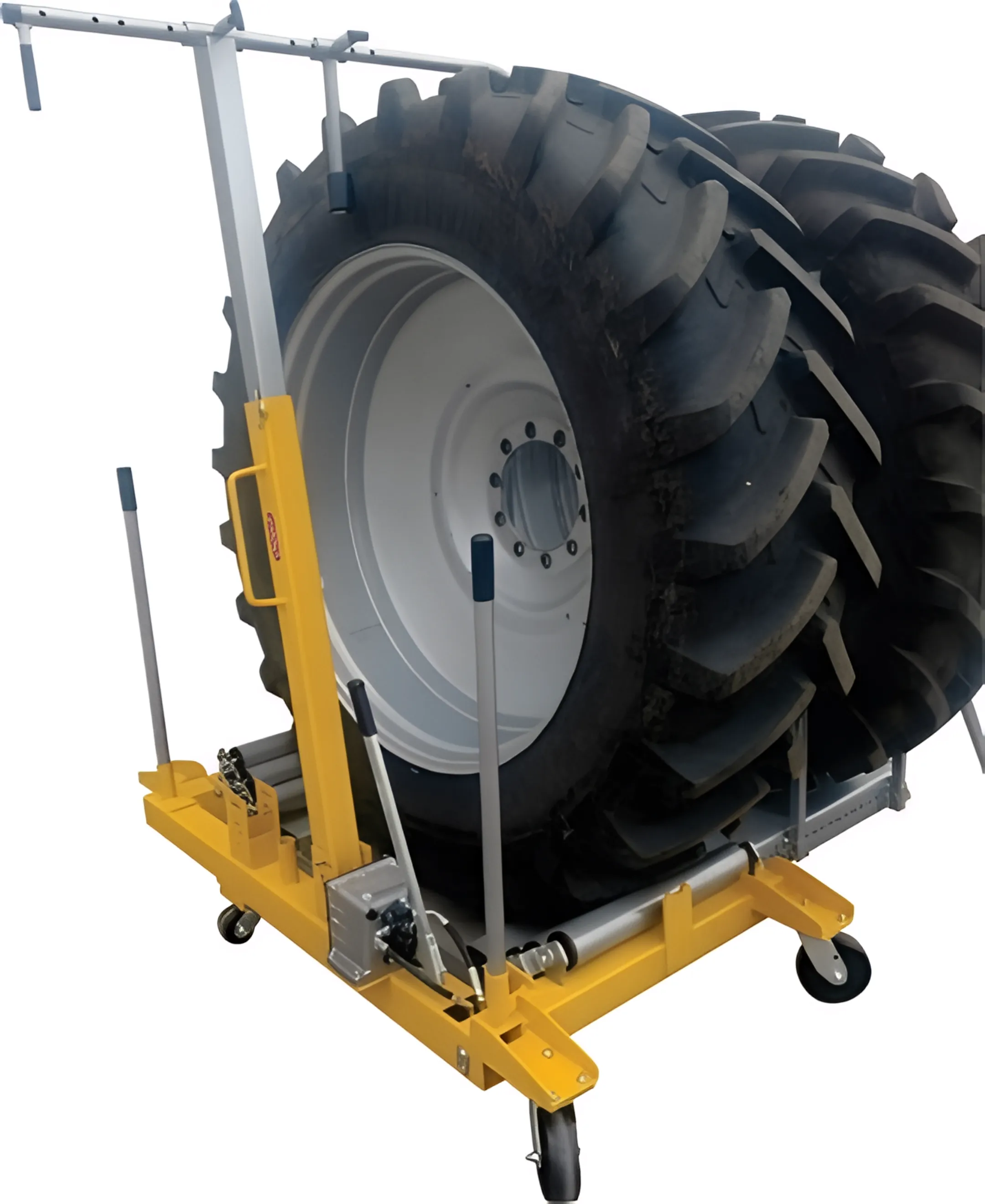

The Heavy Duty Ag Wheel Dolly features a 12V over hydraulic roller-width adjustment system controlled by a handheld unit. This allows operators to easily set the spacing of the 30-inch rollers to match large agricultural and truck tires. It also features a safety arm with three placement positions for secure tire retention.

Yes, the model BS3800 Hydraulic Wheel Dolly is compatible with the Tire Safety Rack. It can be used directly with the safety rack for tire handling and storage without requiring prior tire removal, enabling fast and safe servicing of agricultural and industrial wheels while reducing unnecessary handling steps.
