Heavy Duty Big Wheel Dollies

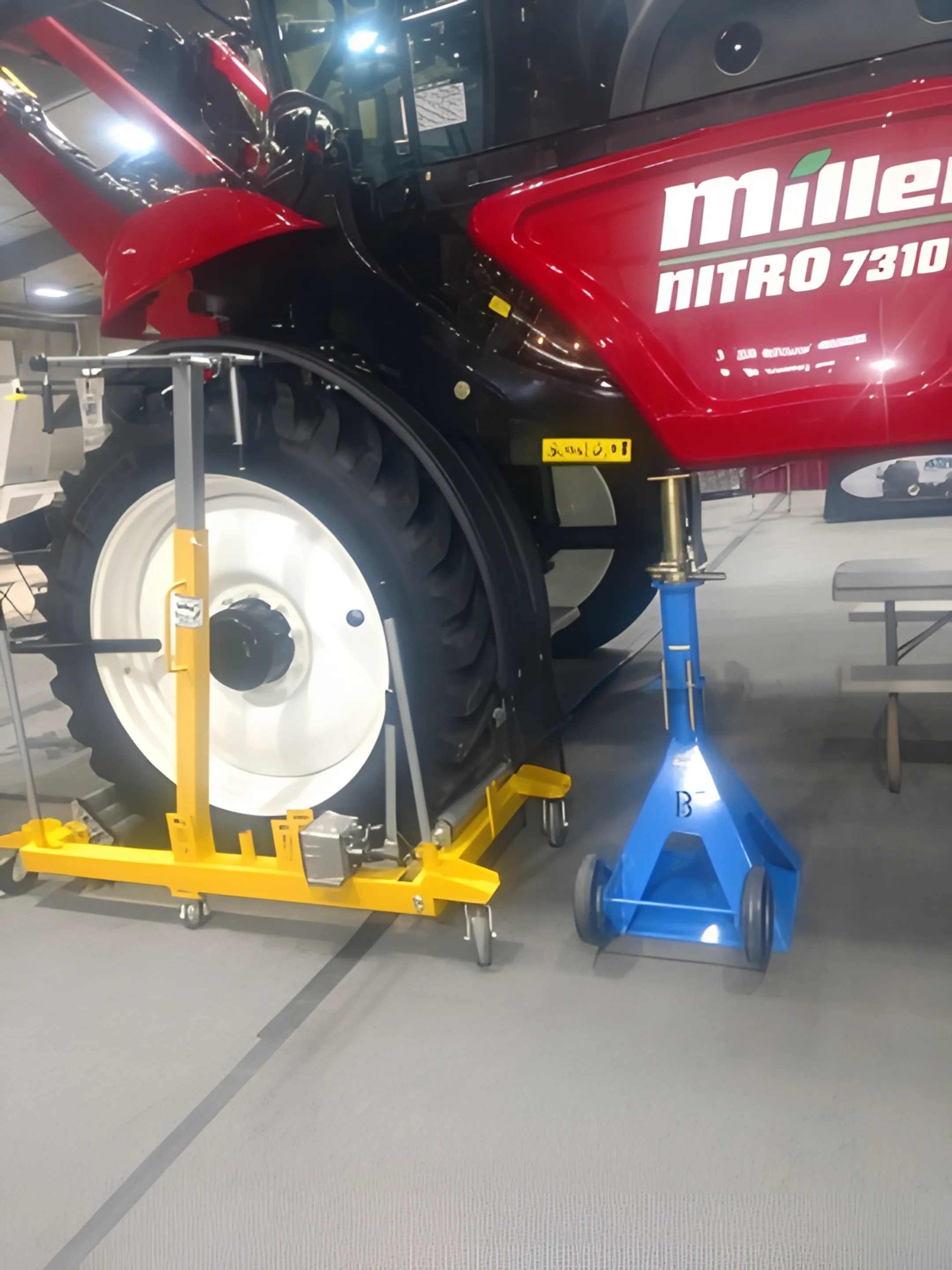

Across the available models, capacities range up to 4,800 lbs. The Hydraulic Wheel Dolly handles up to 3,800 lbs, the Industrial Wheel Mover accommodates up to 4,000 lbs, and the Heavy Duty Ag Wheel Dolly handles loads up to 4,800 lbs. Each unit is built to manage heavy agricultural tires, industrial machinery wheels, or contractor equipment safely.

Wheel and tire compatibility varies across models. The Industrial Wheel Mover features sliding adjustable rollers that accommodate wheel diameters from 36 to 90 inches and metric tires from 320 to 1150. The Hydraulic Wheel Dolly accommodates wheel diameters from 39 to 86 inches with a maximum wheel width of 31 inches, supporting semi tires up to 800 metric.

The dollies feature roller assemblies—such as two roller tables with three rollers each or 30-inch to 31-inch rollers—that support the tire from underneath. These rollers enable the operator to rotate the heavy tire smoothly while it remains on the dolly, making it significantly easier to align wheel holes with lug nuts during installation.

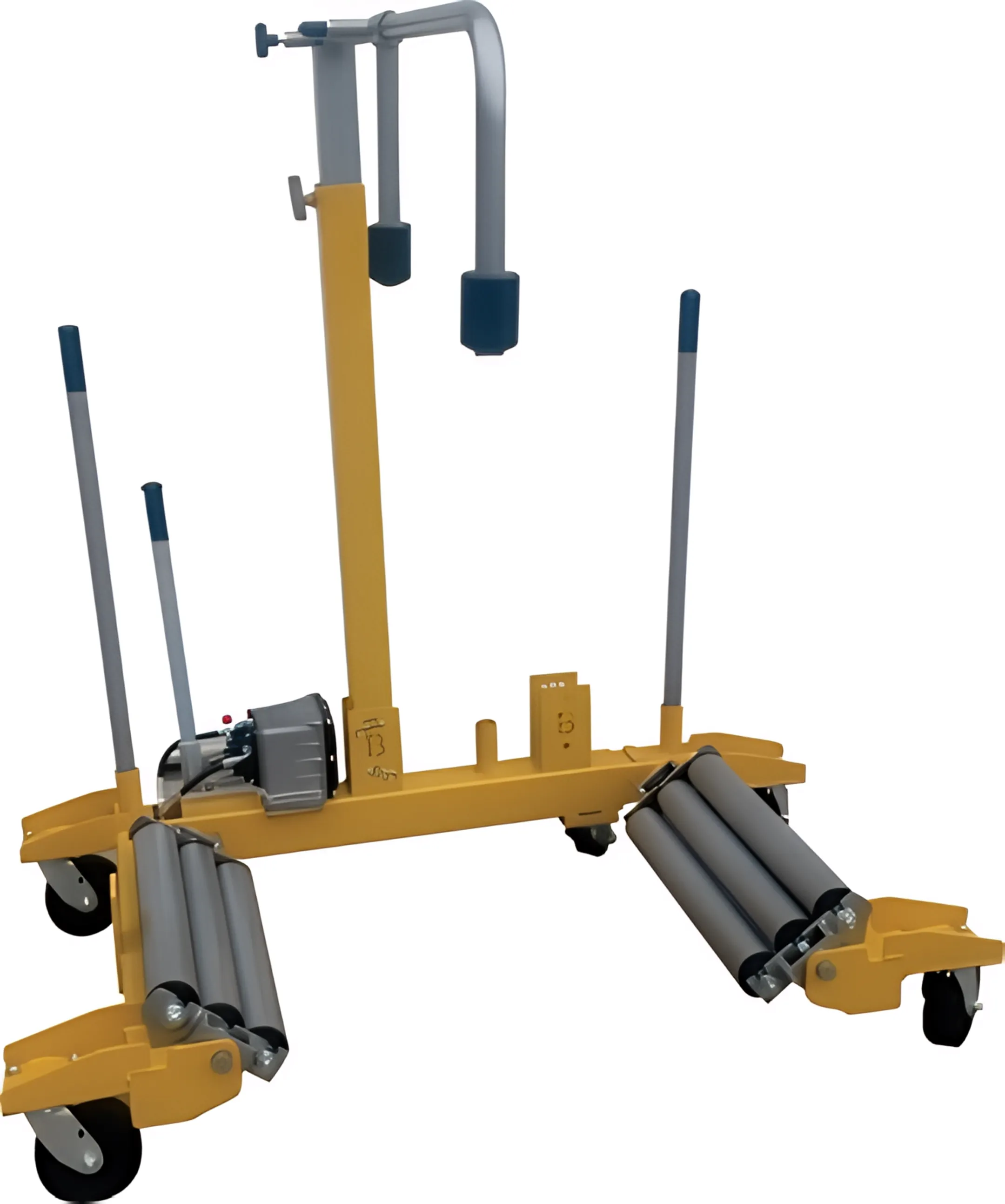

Available power mechanisms include manual mechanical systems, two-stage hydraulic pumps, and 12V over hydraulic systems. For example, the Hydraulic Wheel Dolly utilizes a two-stage hydraulic pump for lifting action, while the Heavy Duty Ag Wheel Dolly features a 12V over hydraulic roller-width adjustment operated via a handheld control.

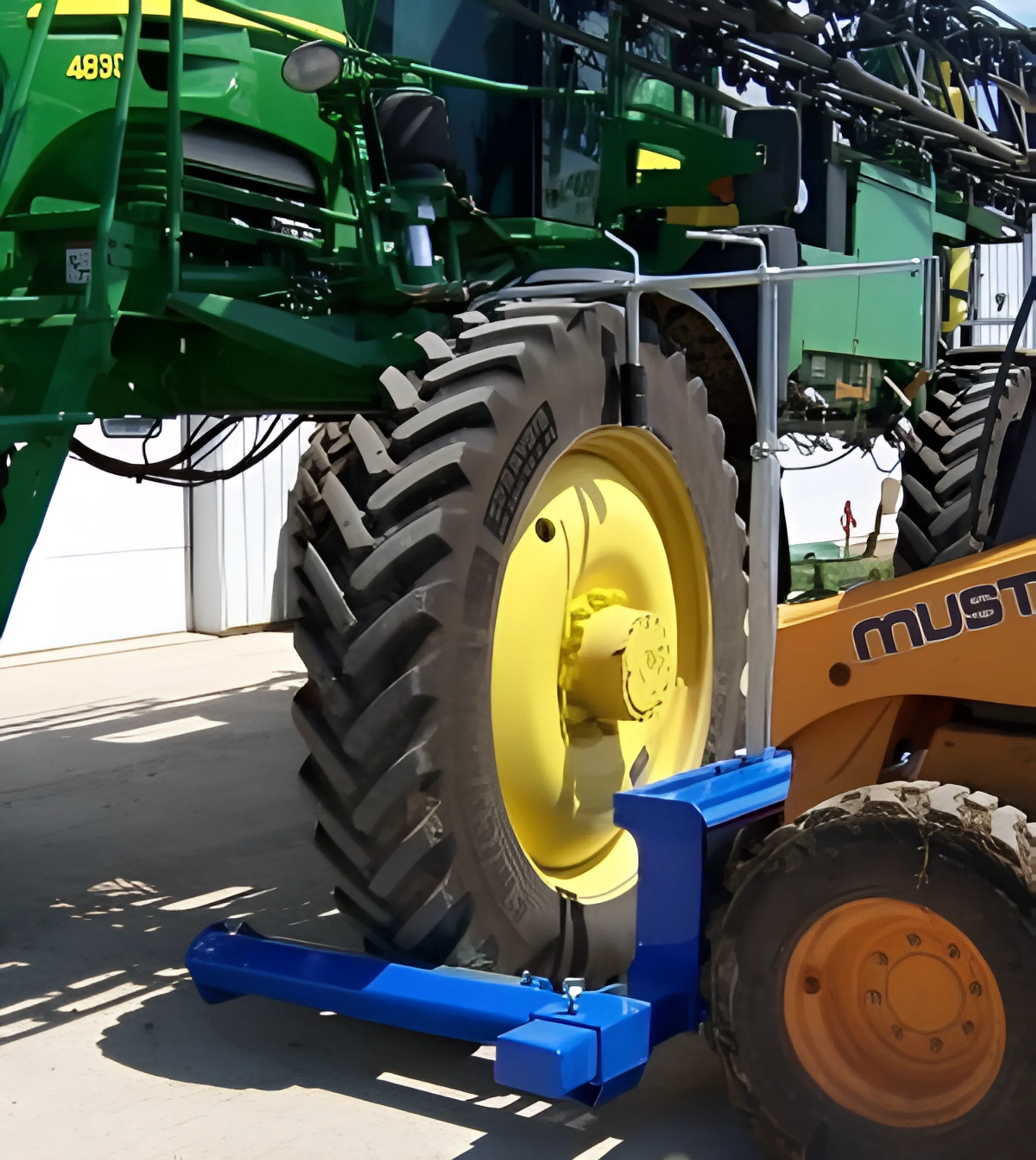

Yes, specific models offer loader compatibility. The Industrial Wheel Mover can be equipped for use with skid loader quick attach systems, forklifts, or loaders fitted with applicable attachments. This allows operators to lift, transport, and service large agricultural and contractor wheels safely using existing shop equipment.

Pricing for heavy duty wheel dollies is available upon request. Items can be ordered by contacting Bierman Inc directly by phone at 712.324.1930. Our team provides professional dealer support and product guidance to help you select the appropriate wheel handling equipment for your agricultural or industrial operations.
